Soul 网关 3：Http 请求是怎么被处理的？

前文体验了使用 divide 插件转发 Http 请求，本文来分析一个 Http 网络包在 Soul 网关中都经历了什么。

粗略观察

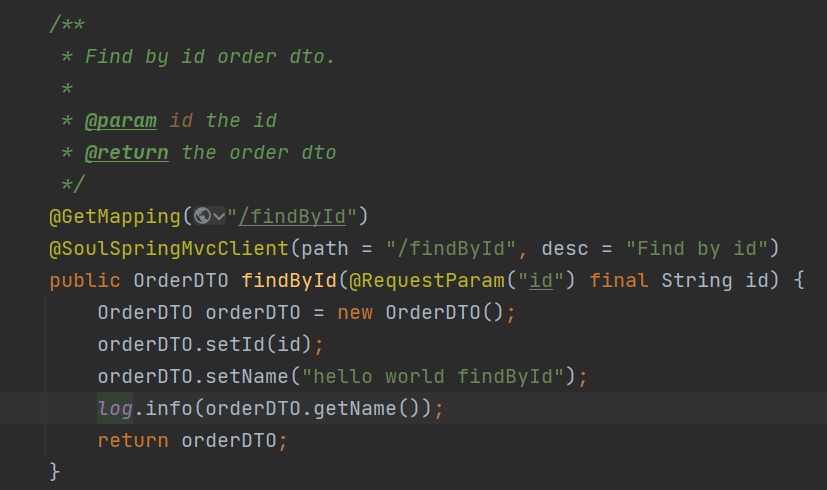

用 PostMan 发送网络包，观察日志，摘要如下

1
2
2021-03-05 19:34:12.367  INFO 21748 --- [work-threads-20] o.d.soul.plugin.base.AbstractSoulPlugin  : divide selector success match , selector name :/http
2021-03-05 19:34:12.367  INFO 21748 --- [work-threads-20] o.d.soul.plugin.base.AbstractSoulPlugin  : divide rule success match , rule name :/http/order/findById

这些日志与 divide 插件有关，是 AbstractSoulPlugin 打印出来的

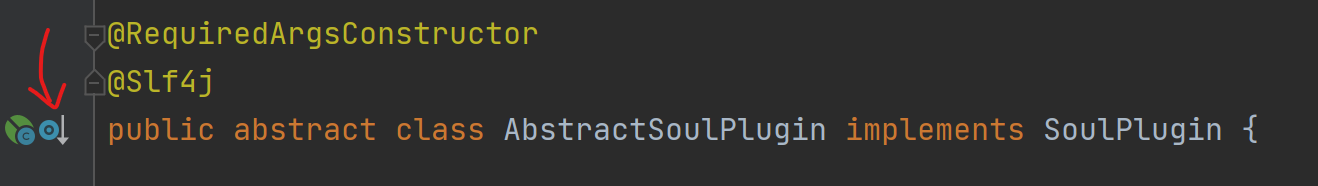

双击 Shift 打开 Search Everywhere 窗口搜索 AbstractSoulPlugin ，跳转到对应代码，点击左侧向下箭头，查看实现类，可以看到我们要找的 DividePlugin

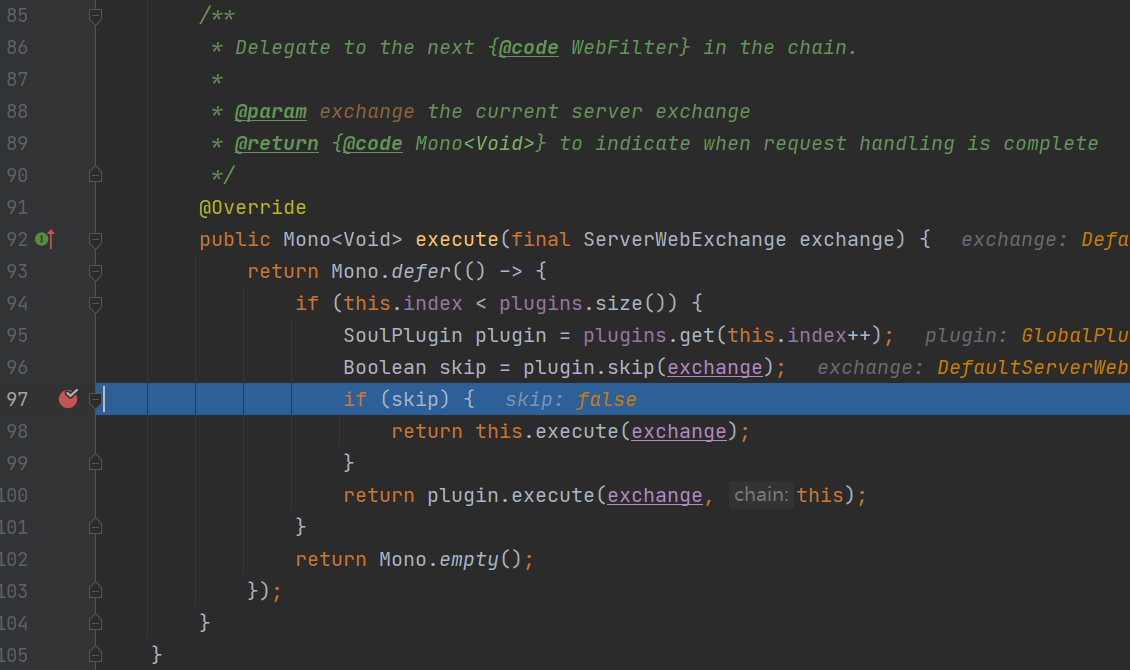

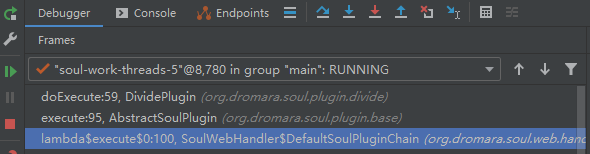

DividePlugin 中有一个很大的 doExecute 方法，在这打个断点，使用 PostMan 发起请求，通过调用栈定位到了 SoulWebHandler 的 execute() 方法

大概就是遍历所有的 plugin 来处理 ServerWebExchange

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
    /**
     * Delegate to the next {@code WebFilter} in the chain.
     *
     * @param exchange the current server exchange
     * @return {@code Mono<Void>} to indicate when request handling is complete
     */
    @Override
    public Mono<Void> execute(final ServerWebExchange exchange) {
        return Mono.defer(() -> {
            if (this.index < plugins.size()) {
                SoulPlugin plugin = plugins.get(this.index++);
                Boolean skip = plugin.skip(exchange);
                if (skip) {
                    return this.execute(exchange);
                }
                return plugin.execute(exchange, this);
            }
            return Mono.empty();
        });
    }
}

接着往上翻阅代码，发现是 SoulWebHandler 的 handle() 方法调用的上面这个 execute()

1
2
3
4
5
6
7
8
9
10
/**
 * Handle the web server exchange.
 *
 * @param exchange the current server exchange
 * @return {@code Mono<Void>} to indicate when request handling is complete
 */
@Override
public Mono<Void> handle(@NonNull final ServerWebExchange exchange) {
    return new DefaultSoulPluginChain(plugins).execute(exchange).subscribeOn(scheduler);
}

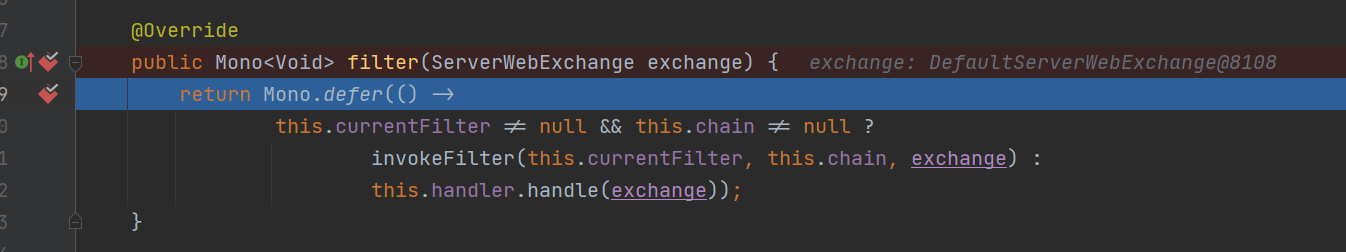

在上面的函数上打断点，再次调试，进入了 DefaultWebFilterChain 类的 filter() 方法

1
2
3
4
5
6
7
@Override
public Mono<Void> filter(ServerWebExchange exchange) {
  return Mono.defer(() ->
      this.currentFilter != null && this.chain != null ?
          invokeFilter(this.currentFilter, this.chain, exchange) :
          this.handler.handle(exchange));
}

再次在上面方法上打断点

来到 FilteringWebHandler 类

1
2
3
4
@Override
public Mono<Void> handle(ServerWebExchange exchange) {
  return this.chain.filter(exchange);
}

来到 WebHandlerDecorator 类

1
2
3
4
@Override
public Mono<Void> handle(ServerWebExchange exchange) {
  return this.delegate.handle(exchange);
}

来到 ExceptionHandlingWebHandler 类

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
@Override
public Mono<Void> handle(ServerWebExchange exchange) {
  Mono<Void> completion;
  try {
  // 当前位置
    completion = super.handle(exchange);
  }
  catch (Throwable ex) {
    completion = Mono.error(ex);
  }

  for (WebExceptionHandler handler : this.exceptionHandlers) {
    completion = completion.onErrorResume(ex -> handler.handle(exchange, ex));
  }
  return completion;
}

来到 HttpWebHandlerAdapter 类，之前一直在传递的 ServerWebExchange 就是在这生成的

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
@Override
public Mono<Void> handle(ServerHttpRequest request, ServerHttpResponse response) {
  if (this.forwardedHeaderTransformer != null) {
    request = this.forwardedHeaderTransformer.apply(request);
  }

  // 生成 exchange
  ServerWebExchange exchange = createExchange(request, response);

  LogFormatUtils.traceDebug(logger, traceOn ->
      exchange.getLogPrefix() + formatRequest(exchange.getRequest()) +
          (traceOn ? ", headers=" + formatHeaders(exchange.getRequest().getHeaders()) : ""));

  // 在这调用
  return getDelegate().handle(exchange)
      .doOnSuccess(aVoid -> logResponse(exchange))
      .onErrorResume(ex -> handleUnresolvedError(exchange, ex))
      .then(Mono.defer(response::setComplete));
}

来到 ReactiveWebServerApplicationContext

1
2
3
4
@Override
public Mono<Void> handle(ServerHttpRequest request, ServerHttpResponse response) {
  return this.handler.handle(request, response);
}

来到 ReactorHttpHandlerAdapter

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
@Override
public Mono<Void> apply(HttpServerRequest reactorRequest, HttpServerResponse reactorResponse) {
  NettyDataBufferFactory bufferFactory = new NettyDataBufferFactory(reactorResponse.alloc());
  try {
  // 生成了 exchange 需要的 request 和 response
    ReactorServerHttpRequest request = new ReactorServerHttpRequest(reactorRequest, bufferFactory);
    ServerHttpResponse response = new ReactorServerHttpResponse(reactorResponse, bufferFactory);

    if (request.getMethod() == HttpMethod.HEAD) {
      response = new HttpHeadResponseDecorator(response);
    }

    return this.httpHandler.handle(request, response)
        .doOnError(ex -> logger.trace(request.getLogPrefix() + "Failed to complete: " + ex.getMessage()))
        .doOnSuccess(aVoid -> logger.trace(request.getLogPrefix() + "Handling completed"));
  }
  catch (URISyntaxException ex) {
    if (logger.isDebugEnabled()) {
      logger.debug("Failed to get request URI: " + ex.getMessage());
    }
    reactorResponse.status(HttpResponseStatus.BAD_REQUEST);
    return Mono.empty();
  }
}

来到 HttpServerHandle

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
@Override
@SuppressWarnings("unchecked")
public void onStateChange(Connection connection, State newState) {
  if (newState == HttpServerState.REQUEST_RECEIVED) {
    try {
      if (log.isDebugEnabled()) {
        log.debug(format(connection.channel(), "Handler is being applied: {}"), handler);
      }
      HttpServerOperations ops = (HttpServerOperations) connection;
      Mono.fromDirect(handler.apply(ops, ops))
          .subscribe(ops.disposeSubscriber());
    }
    catch (Throwable t) {
      log.error(format(connection.channel(), ""), t);
      connection.channel()
                .close();
    }
  }
}

来到 TcpServerBind

1
2
3
4
5
6
7
8
9
10
11
12
13
  @Override
  public void onStateChange(Connection connection, State newState) {
    if (newState == State.DISCONNECTING) {
      if (connection.channel()
                    .isActive() && !connection.isPersistent()) {
        connection.dispose();
      }
    }

    childObs.onStateChange(connection, newState);

  }
}

来到 HttpServerOperations 再然后就是 Netty 的东西了

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
@Override
protected void onInboundNext(ChannelHandlerContext ctx, Object msg) {
  if (msg instanceof HttpRequest) {
    try {
      listener().onStateChange(this, HttpServerState.REQUEST_RECEIVED);
    }
    catch (Exception e) {
      onInboundError(e);
      ReferenceCountUtil.release(msg);
      return;
    }
    if (msg instanceof FullHttpRequest) {
      super.onInboundNext(ctx, msg);
      if (isHttp2()) {
        onInboundComplete();
      }
    }
    return;
  }
  if (msg instanceof HttpContent) {
    if (msg != LastHttpContent.EMPTY_LAST_CONTENT) {
      super.onInboundNext(ctx, msg);
    }
    if (msg instanceof LastHttpContent) {
      onInboundComplete();
    }
  }
  else {
    super.onInboundNext(ctx, msg);
  }
}

小结

  • HttpServerOperations : 接受 Netty 请求的地方
  • TcpServerBind
  • HttpServerHandle
  • ReactorHttpHandlerAdapter ：生成 response 和 request
  • ReactiveWebServerApplicationContext
  • HttpWebHandlerAdapter ：exchange 的生成
  • ExceptionHandlingWebHandler
  • WebHandlerDecorator
  • FilteringWebHandler
  • DefaultWebFilterChain
  • SoulWebHandler ：plugins 调用链
  • DividePlugin ：plugin 具体处理

    调用链

    接下来看看
    SoulWebHandler 的 plugins 调用链，在下面的函数上打断点分析 plugin 的执行情况

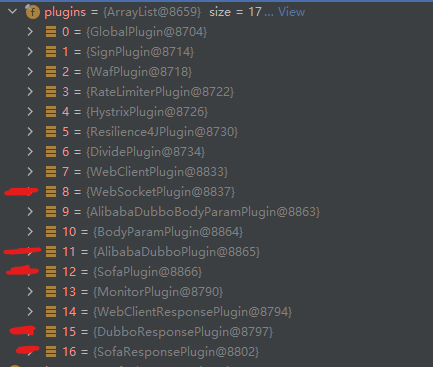

    下图红色的插件被跳过了

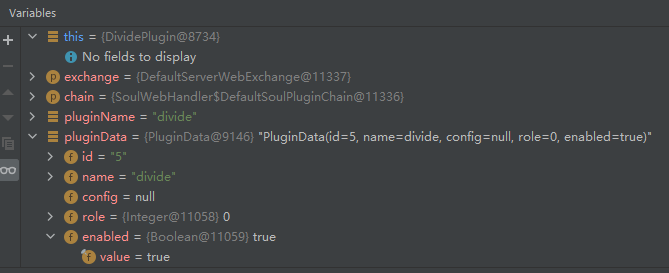

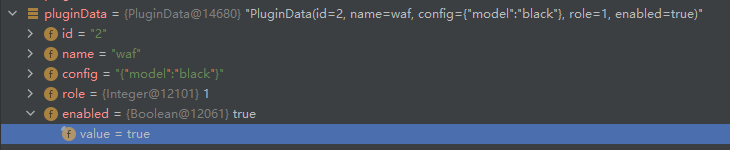

    下面是 AbstractSoulPlugin 的 execute()，注释位置要判断是否 enable，我们只启用了 DividePlugin，WafPlugin ，所以只有这两个插件会运行这个方法的 if 部分，在 if 中进行了一些规则的匹配。

看一下 SoulAdmin 的界面

每个插件界面都有「选择器列表」和「选择器规则列表」，就是在这个地方匹配的

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
@Override
public Mono<Void> execute(final ServerWebExchange exchange, final SoulPluginChain chain) {
    String pluginName = named();
    final PluginData pluginData = BaseDataCache.getInstance().obtainPluginData(pluginName);
    // 此处判断插件是否启用
    if (pluginData != null && pluginData.getEnabled()) {
        final Collection<SelectorData> selectors = BaseDataCache.getInstance().obtainSelectorData(pluginName);
        if (CollectionUtils.isEmpty(selectors)) {
            return handleSelectorIsNull(pluginName, exchange, chain);
        }
        // 匹配选择器
        final SelectorData selectorData = matchSelector(exchange, selectors);
        if (Objects.isNull(selectorData)) {
            return handleSelectorIsNull(pluginName, exchange, chain);
        }
        // 打印日志
        selectorLog(selectorData, pluginName);
        final List<RuleData> rules = BaseDataCache.getInstance().obtainRuleData(selectorData.getId());
        if (CollectionUtils.isEmpty(rules)) {
            return handleRuleIsNull(pluginName, exchange, chain);
        }
        // 匹配选择器规则
        RuleData rule;
        if (selectorData.getType() == SelectorTypeEnum.FULL_FLOW.getCode()) {
            //get last
            rule = rules.get(rules.size() - 1);
        } else {
            // 匹配规则
            rule = matchRule(exchange, rules);
        }
        if (Objects.isNull(rule)) {
            return handleRuleIsNull(pluginName, exchange, chain);
        }
        // 日志
        ruleLog(rule, pluginName);
        // 进入插件的处理方法
        return doExecute(exchange, chain, selectorData, rule);
    }
    return chain.execute(exchange);
}

以 divide 插件为例，上面方法会打印日志

1
2
2021-03-06 15:06:51.105  INFO 22368 --- [-work-threads-1] o.d.soul.plugin.base.AbstractSoulPlugin  : divide selector success match , selector name :/http
2021-03-06 15:07:03.683  INFO 22368 --- [-work-threads-1] o.d.soul.plugin.base.AbstractSoulPlugin  : divide rule success match , rule name :/http/order/findById

然后再 WebClientPlugin 中看到了似乎发送了网络请求

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
@Override
public Mono<Void> execute(final ServerWebExchange exchange, final SoulPluginChain chain) {
    final SoulContext soulContext = exchange.getAttribute(Constants.CONTEXT);
    assert soulContext != null;
    String urlPath = exchange.getAttribute(Constants.HTTP_URL);
    if (StringUtils.isEmpty(urlPath)) {
        Object error = SoulResultWrap.error(SoulResultEnum.CANNOT_FIND_URL.getCode(), SoulResultEnum.CANNOT_FIND_URL.getMsg(), null);
        return WebFluxResultUtils.result(exchange, error);
    }
    long timeout = (long) Optional.ofNullable(exchange.getAttribute(Constants.HTTP_TIME_OUT)).orElse(3000L);
    int retryTimes = (int) Optional.ofNullable(exchange.getAttribute(Constants.HTTP_RETRY)).orElse(0);
    log.info("The request urlPath is {}, retryTimes is {}", urlPath, retryTimes);
    HttpMethod method = HttpMethod.valueOf(exchange.getRequest().getMethodValue());
    WebClient.RequestBodySpec requestBodySpec = webClient.method(method).uri(urlPath);
    return handleRequestBody(requestBodySpec, exchange, timeout, retryTimes, chain);
}

private Mono<Void> handleRequestBody(final WebClient.RequestBodySpec requestBodySpec,
                                     final ServerWebExchange exchange,
                                     final long timeout,
                                     final int retryTimes,
                                     final SoulPluginChain chain) {
    return requestBodySpec.headers(httpHeaders -> {
        httpHeaders.addAll(exchange.getRequest().getHeaders());
        httpHeaders.remove(HttpHeaders.HOST);
    })
            .contentType(buildMediaType(exchange))
            .body(BodyInserters.fromDataBuffers(exchange.getRequest().getBody()))
            .exchange()
            .doOnError(e -> log.error(e.getMessage()))
            .timeout(Duration.ofMillis(timeout))
            .retryWhen(Retry.onlyIf(x -> x.exception() instanceof ConnectTimeoutException)
                .retryMax(retryTimes)
                .backoff(Backoff.exponential(Duration.ofMillis(200), Duration.ofSeconds(20), 2, true)))
            .flatMap(e -> doNext(e, exchange, chain));

}

private Mono<Void> doNext(final ClientResponse res, final ServerWebExchange exchange, final SoulPluginChain chain) {
    if (res.statusCode().is2xxSuccessful()) {
        exchange.getAttributes().put(Constants.CLIENT_RESPONSE_RESULT_TYPE, ResultEnum.SUCCESS.getName());
    } else {
        exchange.getAttributes().put(Constants.CLIENT_RESPONSE_RESULT_TYPE, ResultEnum.ERROR.getName());
    }
    exchange.getAttributes().put(Constants.CLIENT_RESPONSE_ATTR, res);
    return chain.execute(exchange);
}

来到 WebClientResponsePlugin ，好像返回了一个 response

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
/**
 * Process the Web request and (optionally) delegate to the next
 * {@code WebFilter} through the given {@link SoulPluginChain}.
 *
 * @param exchange the current server exchange
 * @param chain    provides a way to delegate to the next filter
 * @return {@code Mono<Void>} to indicate when request processing is complete
 */
@Override
public Mono<Void> execute(final ServerWebExchange exchange, final SoulPluginChain chain) {
    return chain.execute(exchange).then(Mono.defer(() -> {
        ServerHttpResponse response = exchange.getResponse();
        ClientResponse clientResponse = exchange.getAttribute(Constants.CLIENT_RESPONSE_ATTR);
        if (Objects.isNull(clientResponse)
                || response.getStatusCode() == HttpStatus.BAD_GATEWAY
                || response.getStatusCode() == HttpStatus.INTERNAL_SERVER_ERROR) {
            Object error = SoulResultWrap.error(SoulResultEnum.SERVICE_RESULT_ERROR.getCode(), SoulResultEnum.SERVICE_RESULT_ERROR.getMsg(), null);
            return WebFluxResultUtils.result(exchange, error);
        }
        if (response.getStatusCode() == HttpStatus.GATEWAY_TIMEOUT) {
            Object error = SoulResultWrap.error(SoulResultEnum.SERVICE_TIMEOUT.getCode(), SoulResultEnum.SERVICE_TIMEOUT.getMsg(), null);
            return WebFluxResultUtils.result(exchange, error);
        }
        response.setStatusCode(clientResponse.statusCode());
        response.getCookies().putAll(clientResponse.cookies());
        response.getHeaders().putAll(clientResponse.headers().asHttpHeaders());
        return response.writeWith(clientResponse.body(BodyExtractors.toDataBuffers()));
    }));
}

复查

详细看一下 WafPlugin、DividePlugin 、WebClientPlugin 、 WebClientResponsePlugin 等

DividePlugin

发送一个错误请求试试，这个请求多打了一个字母 d

发现下面这俩东西

FallbackUtils 类

1
2
3
4
5
6
7
8
9
10
11
12
/**
 * get no rule result.
 *
 * @param pluginName the plugin name
 * @param exchange   the exchange
 * @return the mono
 */
public static Mono<Void> getNoRuleResult(final String pluginName, final ServerWebExchange exchange) {
    log.error("can not match rule data: {}", pluginName);
    Object error = SoulResultWrap.error(SoulResultEnum.RULE_NOT_FIND.getCode(), SoulResultEnum.RULE_NOT_FIND.getMsg(), null);
    return WebFluxResultUtils.result(exchange, error);
}

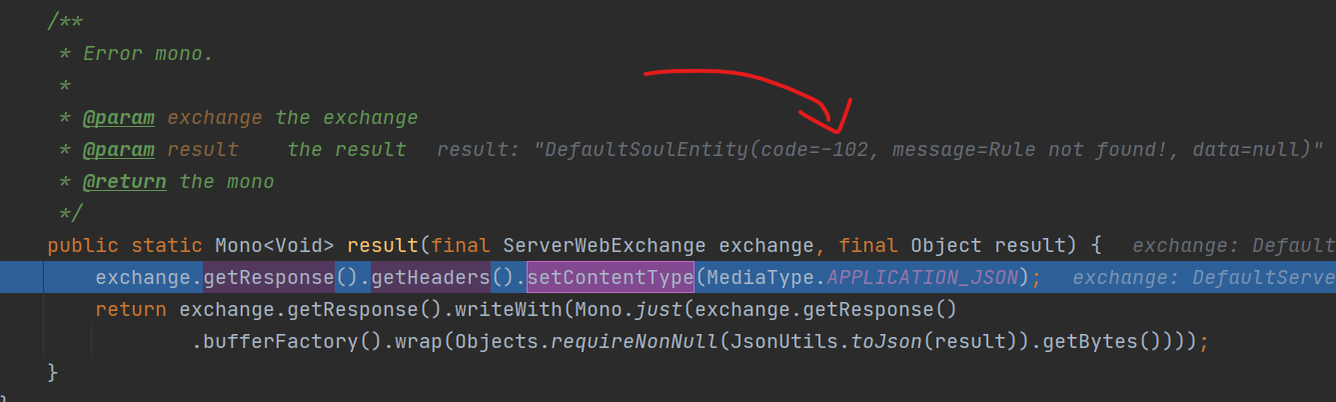

WebFluxResultUtils，这里构建错误响应

1
2
3
4
5
6
7
8
9
10
11
12
/**
 * Error mono.
 *
 * @param exchange the exchange
 * @param result    the result
 * @return the mono
 */
public static Mono<Void> result(final ServerWebExchange exchange, final Object result) {
    exchange.getResponse().getHeaders().setContentType(MediaType.APPLICATION_JSON);
    return exchange.getResponse().writeWith(Mono.just(exchange.getResponse()
            .bufferFactory().wrap(Objects.requireNonNull(JsonUtils.toJson(result)).getBytes())));
}


这是 PostMan 得到的响应，与上图匹配

WafPlugin

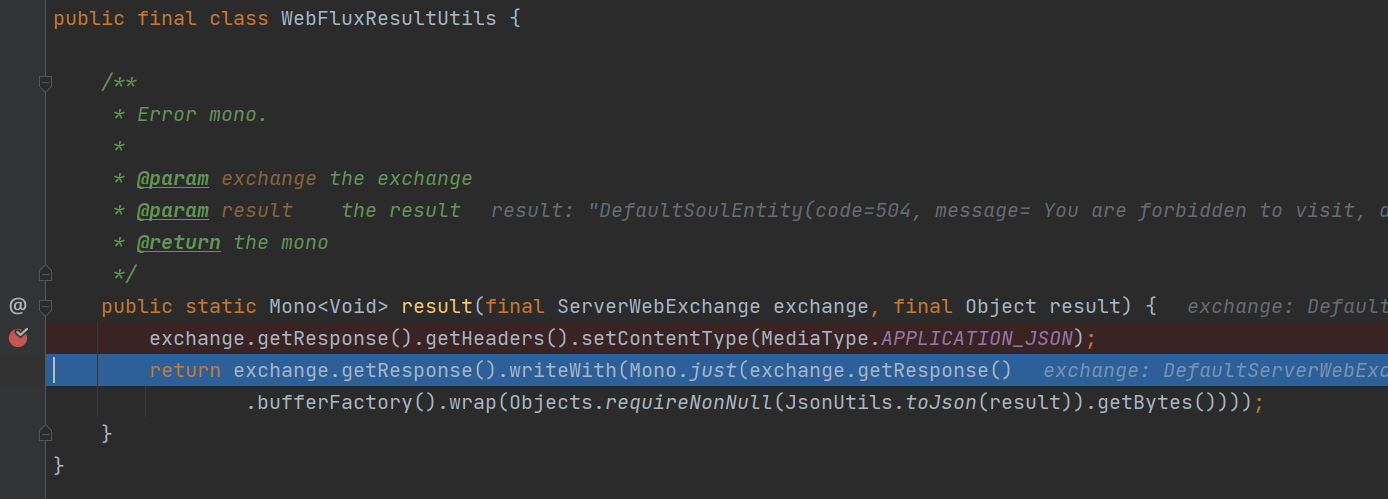

发送一条可以被 WafPlugin 拒绝的请求。同样会到 WebFluxResultUtils 来构建错误响应。

WebClientPlugin

前面猜测 WebClientPlugin 的 handleRequestBody 会给真正的后台服务发送请求，doNext()，会做接下来的处理，为了验证这个猜测，首先定位到 soul-examples-http - controller - 的 OrderController 类，里面的 findById() 就是我们之前请求的方法，给他加上个日志功能。

然后在 WebClientPlugin 的 handleRequestBody 和 doNext() 上打上断点，再发送一个正确的请求，发现日志的确是在这个时候打印出来的。

WebClientResponsePlugin

之前猜测 WebClientResponsePlugin 的 execute() 方法会返回请求的数据给 postman()，打断点，发现execute() 执行完后会返回到 SoulWebHandler 也就是前文调用链的地方。
之分析调用链的时候已经知道 WebClientResponsePlugin 是最后一个插件，它后边两个都是跳过的状态，在之后就是一些 reactor 和 Netty 的东西了，相信应该是刚刚那个地方给 PostMan 返回的结果。

DefaultWebFilterChain

还记得 DefaultWebFilterChain 的这个方法吗？在这打个断点看看

1
2
3
4
5
6
7
@Override
public Mono<Void> filter(ServerWebExchange exchange) {
  return Mono.defer(() ->
      this.currentFilter != null && this.chain != null ?
          invokeFilter(this.currentFilter, this.chain, exchange) :
          this.handler.handle(exchange));
}

发现了下面几个相关类，也就跟据名字猜测一下意思吧。

  • MetricsWebFilter

  • HealthFilter

  • FileSizeFilter

    总结

  • HttpServerOperations : 接收 Netty 请求的地方

  • ReactorHttpHandlerAdapter ：生成 response 和 request

  • HttpWebHandlerAdapter ：exchange 的生成

  • DefaultWebFilterChain

  • SoulWebHandler：plugins 调用链

请求由 Netty 收到后，来到 Filter，这里进行一些处理：健康检查，文件大小检查等待，然后来到核心的 plugins，这里实现了 Soul 的核心功能：过滤，转发，返回等等。

Soul plugins 调用链
